Not all sofa beds (also known as pull-out couches, hide-a-beds, and sleeper sofas) are built the same. The mechanism underneath the mattress plays a bigger role than most people realize: it determines how your mattress folds, how thick it can be, and even which materials will work at all.
If you’re replacing a sofa bed mattress, identifying your mechanism is the first (and most important) step. Choosing the wrong type — even in the correct size — can lead to discomfort, difficulty closing the sofa, or damage to the frame.
What You'll Find In This Article

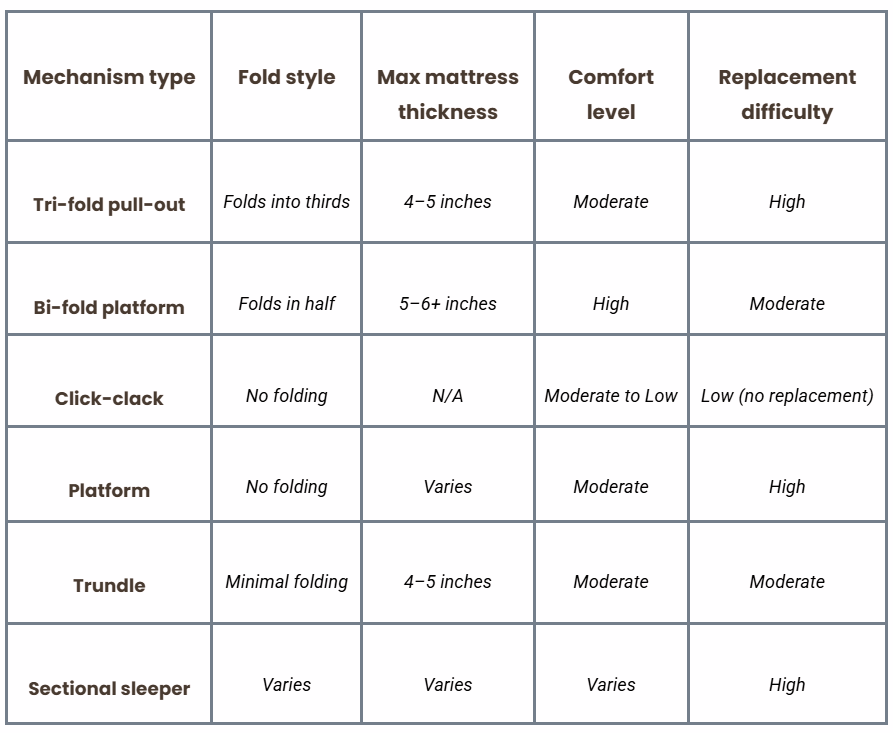

Sofa bed mechanism comparison
Pull-out sofa bed mechanisms | Metal frame systems
Pull-out mechanisms are the most widely used design in traditional sleeper sofas. These systems store a folded mattress inside the sofa and extend outward on a metal frame.
Traditional 3-fold sleeper sofa mechanism
This is the most common type found in older and mid-range sofa beds.
The mattress folds into three sections and sits on a metal support system, typically made of springs, bars, or mesh. When opened, the frame unfolds in stages to create a sleeping surface.
Key characteristics
- Mattress folds into three sections
- Limited to thinner mattresses (usually 4–5 inches)
- Requires flexible materials that bend easily
What this means for mattress replacement
These systems are the most restrictive. Thick or rigid mattresses won’t fold properly, which can prevent the sofa from closing or create pressure points along the frame bars.
Common problems
These often create pressure points from metal bars or support wires beneath the mattress. Thin mattresses can make these features more noticeable, leading to discomfort.
2-fold sofa bed mechanism | Platform or premium systems
A more modern alternative, often found in higher-end sleeper sofas. Instead of folding into three sections, the mattress folds once in half and rests on a sturdier platform — either solid, slatted, or webbed.
Key characteristics
- Mattress folds once (2 sections)
- Supports thicker mattresses (often 5–6 inches or more)
- More even support across the surface
What this means for mattress replacement
These mechanisms allow for significantly better comfort and more material options, including memory foam and hybrid constructions. They’re much less restrictive than 3-fold systems.
Common problems
Generally more comfortable, but incorrect mattress sizing can still cause closing issues or uneven support if the mattress is too thick.
Click-clack sofa beds | Fold-down mechanisms
Click-clack designs work completely differently from pull-out systems. Instead of unfolding a hidden mattress, the backrest simply folds down to create a flat sleeping surface. These are common in compact, modern, or budget-friendly sofa beds.
Key characteristics
- Backrest clicks down into a flat position
- No separate mattress — seat cushions become the bed
- Simple hinge-based mechanism
What this means for mattress replacement
There is no traditional mattress to replace. Comfort upgrades typically involve mattress toppers rather than full replacements.
Common problems
Because there is no separate mattress, the sleeping surface can feel firm or uneven. Comfort is usually improved with a mattress topper rather than a replacement.
Convertible platform sofa beds | Lift-and-pull systems
This category includes newer designs that prioritize simplicity and hidden storage over traditional metal frames. Instead of unfolding outward, the seat lifts and extends forward, revealing a flat platform beneath.
Key characteristics
- Seat lifts up and pulls forward
- Platform sections extend to form a bed
- Often uses loose cushions or integrated foam layers
What this means for mattress replacement
These systems rarely use standard mattress sizes. Replacement options are limited and often require custom solutions or modular cushion upgrades.
Common problems
These can be difficult to upgrade due to non-standard sizing. Poorly fitted cushions may slide or create gaps in the sleeping surface.
Need help choosing the right mattress?
We’ll help you find the right fit — no pressure, just expert advice.
Trundle sofa bed mechanisms
Trundle-style sofa beds include a secondary sleeping surface stored underneath the main seat.
When pulled out, the lower section can either remain separate or lift to match the height of the main cushion area.
Key characteristics
- Hidden pull-out bed beneath the sofa
- Can form a larger sleeping area when combined
- Uses thinner, flexible mattresses or cushions
What this means for mattress replacement
These systems often require low-profile mattresses. Flexibility and height are more important than material type.
Common problems
Limited mattress height often results in thinner sleeping surfaces, which can reduce overall comfort.
Sectional sleeper sofa mechanisms
Sectional sofas often incorporate hidden sleeper systems within a chaise or main seating section. These can use either a pull-out metal frame or a platform-style design, depending on the brand and model.
Key characteristics
- Pull-out bed integrated into a sectional layout
- May include storage compartments
- Wide variation in size and construction
What this means for mattress replacement
There is no standard sizing. Always measure the actual sleeping surface, not the sectional dimensions, before ordering a replacement mattress.
Why sofa bed mechanisms matter for mattress replacement
Your sofa bed mechanism directly affects what kind of mattress you can use. A mattress that works perfectly in one mechanism may fail completely in another.
- Maximum mattress thickness
- Will it close properly?
- Will it close properly?
- Flexibility requirements
- Can it fold without damage?
- Can it fold without damage?
- Support system
- Bars, mesh, slats, or platform
- Bars, mesh, slats, or platform
- Material compatibility
- Foam, innerspring, hybrid, air-over-coil
How to identify your sofa bed mechanism
If you’re unsure which type you have, a quick inspection can usually tell you. Identifying the mechanism correctly will save you time, money, and the hassle of returns.
- Number of folds
Three sections = 3-fold pull-out
Two sections = 2-fold platform - Presence of a metal frame
Indicates a traditional pull-out mechanism - Folding backrest
Likely a click-clack or futon-style sofa - Lift-up seat design
Suggests a convertible platform system - Hidden lower bed
Indicates a trundle mechanism
Best mattress types for each sofa bed mechanism
Memory foam mattresses
Memory foam is one of the most popular options for sofa bed mattress replacements. It works especially well in 2-fold and platform-style mechanisms because it can be made thicker while still providing consistent support. However, in 3-fold systems, only thinner, highly flexible memory foam mattresses should be used to ensure the frame can close properly.
Innerspring mattresses
Traditional innerspring mattresses are commonly found in older 3-fold sleeper sofas. They are naturally flexible and fold easily, making them a safe choice for tighter mechanisms. However, they tend to be thinner and may not provide the same pressure relief as foam options.
Hybrid mattresses
Hybrid mattresses combine foam and coils, offering a balance of comfort and support. These are best suited to 2-fold and platform systems, where there is enough space to accommodate their added thickness. Most hybrids are not flexible enough for 3-fold frames.
Air-over-coil mattresses
Air-over-coil designs feature an inflatable air chamber over a coil base. These are often used in higher-end traditional sleeper sofas. While they can work in 3-fold systems, they require careful sizing and maintenance, as air chambers can be prone to leaks over time.
Common brands and their sofa bed mechanisms
IKEA
Many IKEA sofa beds use platform-style, trundle-style, or click-clack mechanisms. These designs typically do not use traditional separate mattresses, relying instead on cushions or foam layers.
La-Z-Boy
La-Z-Boy sleeper sofas often use 3-fold pull-out mechanisms, sometimes paired with air-over-coil mattresses. These systems usually require thinner, flexible replacements.
American Leather
Known for premium construction, American Leather specializes in platform-style mechanisms that support thicker mattresses and provide more even support.
Ashley Furniture
Ashley sleeper sofas vary widely and may use either 3-fold pull-out systems or platform designs, depending on the model. Measuring and identifying the mechanism is especially important with this brand.
Related considerations before choosing a replacement mattress
Mattress thickness limits
Each mechanism has a maximum height it can accommodate. Exceeding this can prevent the sofa from closing.
Mattress flexibility
Foldable systems require materials that bend without breaking or deforming.
Sleeping frequency
Occasional-use sofa beds can get away with thinner mattresses, while daily-use sleepers benefit from thicker, higher-density options (when the mechanism allows).
Frame support design
Bar-and-mesh systems feel very different from platform bases—and your mattress needs to compensate accordingly.
Questions and Answers
What are the different types of sofa bed mechanisms?
The most common sofa bed mechanisms include pull-out metal frame systems (2-fold and 3-fold), click-clack (fold-down) designs, convertible platform systems, trundle-style beds, and sectional sleepers. Each type affects how the mattress folds, how thick it can be, and what replacement options are available.
How do I identify my sofa bed mechanism?
You can usually identify it by how it opens:
- A pull-out metal frame indicates a traditional sleeper
- A folding backrest suggests a click-clack design
- A lift-and-pull seat points to a platform system
- A hidden lower bed indicates a trundle
Counting how many times the mattress folds (2-fold vs 3-fold) can also help.
What is the difference between a 2-fold and 3-fold sofa bed mechanism?
A 3-fold mechanism folds the mattress into three sections and typically requires thinner, more flexible mattresses. A 2-fold mechanism folds the mattress in half and usually supports thicker, more comfortable mattress options due to its more supportive platform design.
Can I use any mattress in a sofa bed?
No, sofa bed mattresses must match both the size and mechanism type. Using the wrong thickness or material can prevent the sofa from closing properly or damage the frame. Always check the maximum height and flexibility requirements for your specific mechanism.
What mattress thickness works best for a sofa bed?
Most 3-fold sofa beds support mattresses between 4 and 5 inches thick, while 2-fold and platform systems can often handle 5 to 6 inches or more. Always check your specific mechanism’s limits before upgrading.
Are sofa bed mattresses standard sizes?
Not always. While many follow standard names like queen or full, the actual dimensions can vary by brand and mechanism. It’s important to measure the frame or existing mattress rather than relying on size labels alone.
